A Complete Range of Solutions for Hand Fractures
OsteoMed Hand Plating System (HPS)
Overview

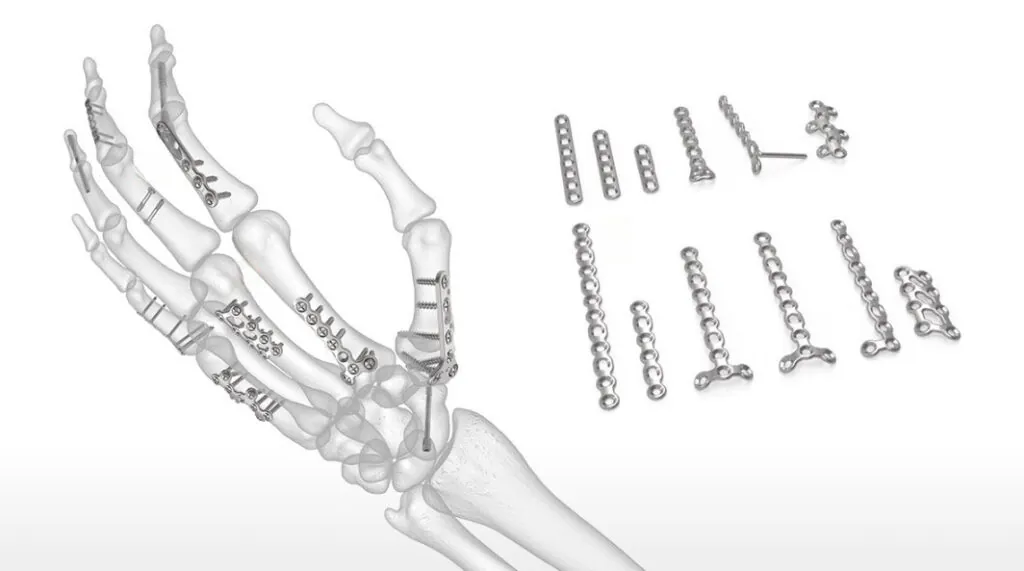

The OsteoMed Hand Plating System (HPS) features low-profile implants and instrumentation designed specifically for treating hand trauma.
The HPS Plates are available in four size modules: 1.2, 1.6, 2.0, and 2.4 mm, and accept up to four screw types: VA locking, nonlocking, lag, and cannulated. Also featured are hand fusion plates in two different sizes. In total, the system includes 68 plates, 4 screw types, and 3 K-wires.
Explore the OsteoMed Hand Fusion System, with solutions for CMC fusions, PIP fusions, and MCP fusions.
Trays

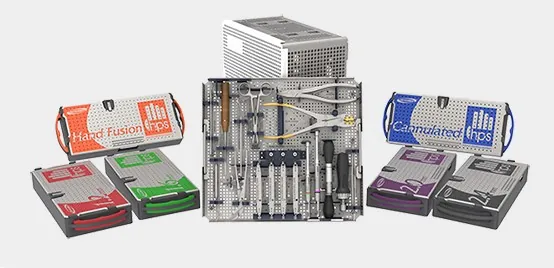

The interchangeable color coded modules – 1.2 mm, 1.6 mm, 2.0 mm, 2.4 mm, cannulated – and instrument tray provide precise instrumentation for every step of the procedure.
TaperLock™ Screw Retention Technology

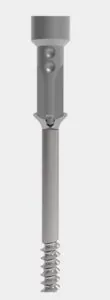

The tapered driver tip press fits at .9 mm, and is designed to provide a thinner screw head profile in all OsteoMed Hand Plating System Variable Angle Locking, Nonlocking, and Lag Screws.
System Components
1.2 mm Lag Screws capture small, avulsed fragments.
Straight Plates Like T and Y Plates, these may be cut to length and bent to better fit patient anatomy.
Offset Grid Plate Designed to provide fixation of comminuted diaphyseal fractures.
Fracture Solutions

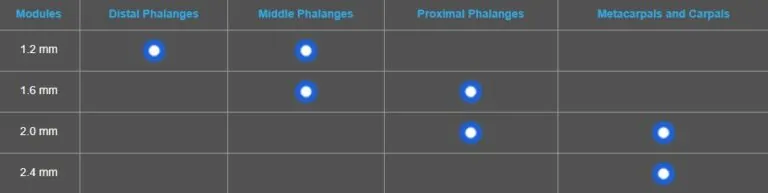

An at-a-glance application chart.
